Liebherr LR 1600/2

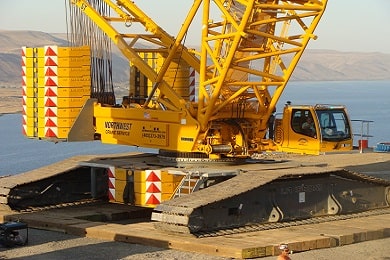

Liebherr LR 1600/2: Heavy Lift Crawler Crane

The Liebherr LR 1600/2 is the perfect solution for a wide array of lifting applications.  Does your project call for re-powering an existing wind farm? Or, do you need to erect new, high output wind turbines? Turn to the LR 1600/2 and its efficient, wind industry specific fixed jib configurations. Does your project require installing or tailing a vessel weighing hundreds of tons? Look no further than the LR 1600/2 with its heavy lift boom attachments, derrick, and suspended ballast. When long reach, class-leading lifting capacity, and efficiency are needed on your construction project call Northwest for an LR 1600/2 equipped with luffing jib and multiple winches for efficient lifting operations. When your project requires careful planning, efficient execution, and safe work call on the LR 1600/2 from Northwest Crane Service, L.L.C.

Liebherr LR 1600/2 Technical Data

Max Lifting Capacity 1,322,000 lbs at 36 ft
Max Load Torque 64,094,150 lbs-ft
Main Boom, Light/Heavy 79 ft – 472 ft
Lattice Jib 39 ft – 315 ft
Derrick Mast 98 ft – 118 ft
Superstructure/Central Ballast 419,000 lbs/143,300 lbs
Derrick Ballast 771,600 lbs
Engine output 544 hp
Travel speed 0 – 0.85 mph
Total counterweight 1,245,600 lbs

Download Brochure › Visit Liehberr.com ›

LR 1600/2

Liebherr LR 1600/2 Industries

The LR 1600/2 excels in wind turbine construction, wind turbine re-power projects, wind maintenance, heavy lift applications, construction, petrochemical plants, refineries, and communication. With its numerous capacity enhancing attachments and class-leading lifting capacity, the LR 1600/2 is ideal for virtually any project. When you need lifting capacity, safety, and versatility, turn to the LR 1600/2.

Featured Liebherr LR 1600/2 Crane Projects

Northwest Crane's Liebherr LR1600/2 on site in Portland, OR

Northwest Crane Service’s Liebherr LR1600/2 on site in Portland, OR For Turbine Erection

The Liebherr LR 1600/2 completed the erection of 49 Suzlon S88’s, on schedule, on a wind project near Portland, Oregon. The 49 turbine site set alongside the Colombia River. Northwest Crane Service operated the crane

Billing Wind Farms Erection - 1

Billings Wind Farms Erection

Northwest’s LR1600/2 erecting wind turbines near Billings, OK. Northwest has proudly served the Wind Power Industry in Oklahoma since the first farm was constructed in 2003. Northwest can provide a full range of operated and

Northwest Uses the LR1600 to Lift Demethanizer

Northwest Uses the LR1600 to Lift Demethanizer

Northwest Crane Service utilized a crane from their crawler fleet, the Liebherr LR 1600/2, in Kelton, Texas to lift and set a large demethanizer tower. The tower weighed in at a total of 160,000 lbs
